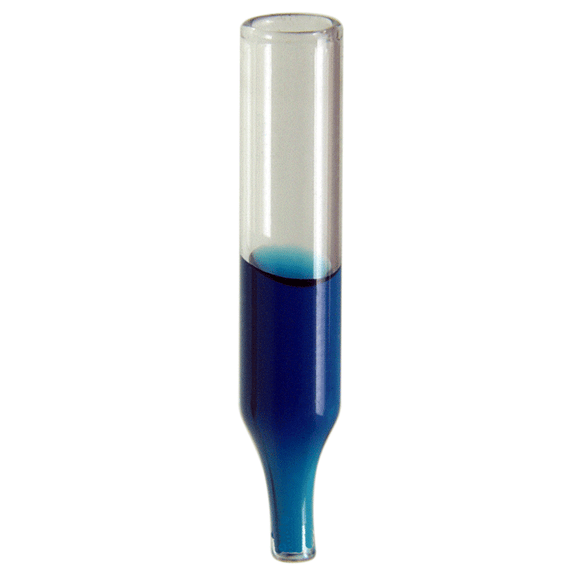

Inserts, Low Volume for Vials, Glass. Clear, Deactivated, 300ul fill volume with conical point and 6x31mm outer dimensions. Self aligning, for use in 2ml autosampler vials. 100/PK.

First hydrolytic, Class A, Type 33, Deactivated / Silanized Borosilicate Glass. Features a conical tip for excellent performance. Residual volume is 2ul with most autosamplers with a 200ul useable volume. This self aligning insert (no spring required) is slightly taller than other inserts and centers itself with the bottom of the insert, sitting on the bottom of the vial. This product is manufactured in an ISO 9001:2015 Certified facility.

Use with 9mm Screw Top and 11mm Snap Top 2ml, 12x32mm autosampler vials.

Wider conical bottom minimizes bubble formation when filling.
