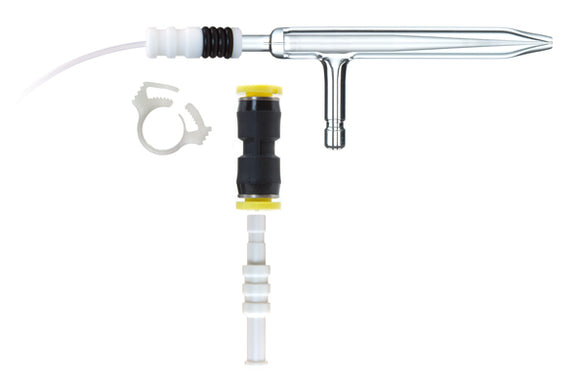

MicroMist U-Series Nebulizer 0.1mL/min

MicroMist U-Series Nebulizer 0.1mL/min (replaces AR35-1-UM01E)

Glass Expansion Part Number: ARG-1-UM01
Equivalent to OEM Part Numbers: 33020005, 47929053, N0775343

Compatible with Analytik Jena® PlasmaQuant 9000 Series ICP-OES

Suggested Operation:

• Gas Flow (L/min): 1
• Sample Uptake (ml/min): 0.1

Includes:

• NFT-025 UniFit Connector with 0.25mm ID x 1.3mm OD x 700mm long tubing (1 piece)
• EL-1 EzyLok Connector Kit

Suitable for the Following Instruments:

• Analytik Jena (Bruker, Varian) | ICP-MS | aurora M90, 800-MS Series
• Hitachi (SII) | ICP-OES / MS | SPS / SPQ Series | Radial
• Jobin Yvon (Horiba) | ICP-OES | 24, 38 & 138 Series, Ultima, Activa | Radial
• Leeman (Teledyne) | ICP-OES | Leeman Series Radial, Prodigy, Profile | Radial
• Leeman (Teledyne) | ICP-OES | Leeman Series Axial / DV, Prodigy, Profile | Axial
• Nu Instruments | ICP-MS | Nu Plasma
• PerkinElmer | ICP-MS | NexION 300
• PerkinElmer | ICP-MS | Elan 6100DRC, DRC II, DRC-e
• PerkinElmer | ICP-MS | Elan 500, 5000, 6000, 9000
• PerkinElmer | ICP-OES | Optima 3000RL, 3100RL, 3200RL | Radial
• Thermo (Finnigan) | ICP-MS | Finnigan Element 1, Element 2, Neptune
• Thermo | ICP-MS | iCAP Q
• Thermo | ICP-MS | X Series
• Thermo | ICP-MS | PlasmaQuad, Axiom

MicroMist Nebulizer

The Glass Expansion MicroMistTM low-flow nebulizer is ideal for ICP-MS applications due to its excellent transport efficiency and precision. The MicroMist uses the same VitriConeTM technology as the industry standard Conikal and SeaSpray nebulizers, resulting in the most rugged and reliable high performance low-flow nebulizer available.

The MicroMist micro-uptake glass concentric nebulizer offers high performance for limited sample volumes. It makes routine ICP-MS Hg determinations possible and reduces matrix effects when used with Glass Expansion's Cinnabar spray chamber.

General Specifications:

• Material: Borosilicate glass
• High physical reproducibility ~ 1%
• TDS tolerance, typically up to 15%
• Low RSD's due to highly accurate construction
• Standard available uptake: 0.05, 0.1, 0.2, 0.4 & 0.6mL/min

Benefits of the VitriCone Construction

• Sample channel is guaranteed uniform from entry point to nebulizer tip and thus resistant to clogging, in addition to providing a zero-dead volume sample connection.
• Rugged precision-machined capillary resists vibration and delivers the best possible precision.
• Industry’s tightest tolerances ensure that each nebulizer will perform to the same high standards as the previous one.

Recommended Applications

• Applications requiring the highest sensitivity and precision, such as toxic metals in cannabis.
• ICP-MS applications where oxide interferences exist.
• Samples with limited volume, such as difficult to digest samples or biological.
• Radioactive samples that are expensive to dispose of.
• Volatile organic solvents that would otherwise cause an excessive load on the plasma.
