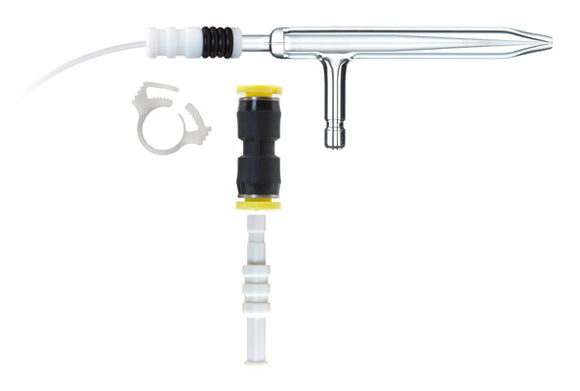

SeaSpray U-Series Nebulizer 2mL/min

SeaSpray U-Series Nebulizer 2mL/min (replaces AR35-1-USS2E)

Glass Expansion Part Number: ARG-1-USS2
Equivalent to OEM Part Numbers: 1300017241, 33010017, N0775340, 8003-0490

Suggested Operation:

• Gas Flow (L/min): 1
• Sample Uptake (ml/min): 2

Includes:

• NFT-075 UniFit Connector with 0.75mm ID x 1.3mm OD x 700mm long tubing (1 piece)
• EL-1 EzyLok Connector Kit

Suitable for the Following Instruments:

• Hitachi (SII) | ICP-OES / MS | SPS / SPQ Series | Radial
• Jobin Yvon (Horiba) | ICP-OES | 24, 38 & 138 Series, Ultima, Activa | Radial
• Leeman (Teledyne) | ICP-OES | Leeman Series Radial, Prodigy, Profile | Radial
• Leeman (Teledyne) | ICP-OES | Leeman Series Axial / DV, Prodigy, Profile | Axial
• PerkinElmer | ICP-OES | Optima 3000RL, 3100RL, 3200RL | Radial

The SeaSpray concentric nebulizer offers outstanding nebulization efficiency for trace level analyses. It offers freedom from clogging while nebulizing solutions to the limit of solubility of most mineral salts, and conferring significant sensitivity gains.

General Specifications:

• Material: Borosilicate glass
• High physical reproducibility ~ 1%
• TDS tolerance, typically up to 20%
• High tolerance to particulates, typically up to 75µm
• Low RSD's due to highly accurate construction
• Standard available uptake: 0.4mL/min and 2mL/min

The SeaSpray combines a unique self-washing tip with the revolutionary Glass Expansion VitriCone construction.The SeaSpray nebulizer tip has been carefully designed with smooth surfaces to minimize adhesion of salt crystals. The design also uses the washing action of the dispersing droplets to further prevent crystal growth, allowing the SeaSpray to handle up to 20% salt solutions.

Glass Expansion nebulizers use the unique VitriCone construction. With the VitriCone design the sample channel is constructed from heavy glass capillary which is machined to very tight tolerances.

With the SeaSpray U-Series nebulizer, Glass Expansion's proprietary UniFit connector slides easily over the sample arm and creates an excellent seal. As with all U-Series nebulizers, the sample channel is uniform from the entry point to the tip so there is nowhere for particulates to be trapped. Since there is nowhere for sample to be trapped, you get the fastest possible washout and highest sample throughput. We supply SeaSpray U-Series nebulizers for all ICP-OES and ICP MS spectrometers.
