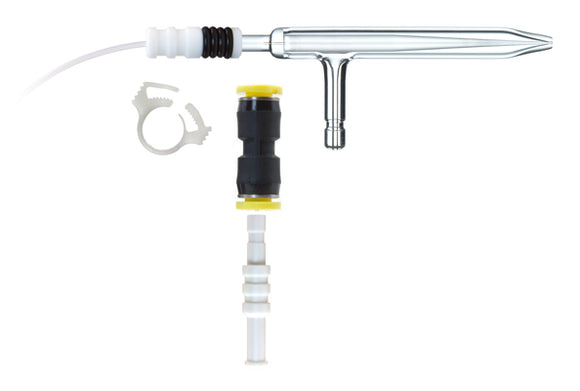

Slurry U-Series Nebulizer 4mL/min

Slurry U-Series Nebulizer 4mL/min (replaces AR35-1-US6E)

Glass Expansion Part Number: ARG-1-US6
Equivalent to OEM Part Numbers: 20-100977, 20100977, 2010097700, N8121059

Suggested Operation:

• Gas Flow (L/min): 1
• Sample Uptake (ml/min): 6

Includes:

• NFT-075 UniFit Connector with 0.75mm ID x 1.3mm OD x 700mm long tubing (1 piece)
• EL-1 EzyLok Connector Kit

Suitable for the Following Instruments:

• Hitachi (SII) | ICP-OES / MS | SPS / SPQ Series | Radial
• Jobin Yvon (Horiba) | ICP-OES | 24, 38 & 138 Series, Ultima, Activa | Radial
• Leeman (Teledyne) | ICP-OES | Leeman Series Radial, Prodigy, Profile | Radial
• Leeman (Teledyne) | ICP-OES | Leeman Series Axial / DV, Prodigy, Profile | Axial
• PerkinElmer | ICP-OES | Optima 3000RL, 3100RL, 3200RL | Radial
• Shimadzu | ICP-OES | 7000, 8000, 9000, 9800 Series | Radial / Axial

The Slurry glass concentric nebulizer is ideal for specialised applications requiring the aspiration of slurries or suspensions. It's capillary bore is 50% larger than standard concentrics which reduces the possibility of particle blockage, while giving excellent signal stability.

General Specifications:

• Material: Borosilicate glass
• High physical reproducibility ~ 1%
• TDS tolerance, typically ~ 1%
• High tolerance to particulates, typically up to 150µm
• Low RSD's due to highly accurate construction
• Slurry nebulizers have a natural liquid uptake of 4mL/min but operate best between 1.5 - 2.5mL/min
