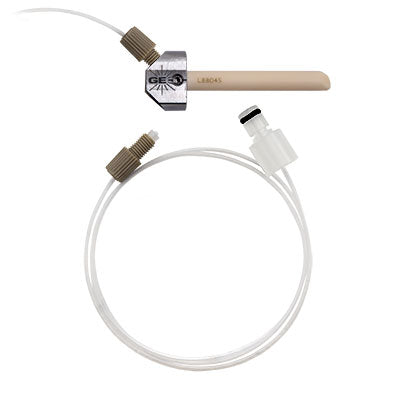

VeeSpray Ceramic Nebulizer for MP - HF Direct Connection Nebulizer For Agilent (Varian) | MP-AES | 4100 / 4200 MP-AES | Radial
Glass Expansion Part Number: MP11-1-CV6
Includes:
- 70-803-0969 Gas Fitting with Ratchet Nebulizer connector
The Ceramic VeeSpray Nebulizer
The Ceramic VeeSpray nebulizer is made from alumina ceramic, making it ideal for HF analyses. It provides reproducible performance when working with samples containing large particulates. It has the same 6mm diameter as the standard concentric and the Alumina material makes it the most robust and abrasion resistant ICP nebulizer.
General Specifications:
- Material: 99.8% Alumina Ceramic
- High physical reproducibility ~ 1%
- TDS tolerance, typically up to 30%
- High tolerance to particulates, typically up to 300µm
- Must be pumped - does not self aspirate
- Design uptake range: 0.6 - 3ml/min. Operates best between 1.5 - 2.5ml/min
All Ceramic VeeSpray nebulizers listed in this website are supplied with: 750mm length of STT-16-75 sample tubing (sample tube 0.75mm ID x 1.6mm OD) Two ratchet connectors 2361 and ferrules 70-803-0780 EzyLok connector QSM-4 and tube adaptor 70-803-0697.
