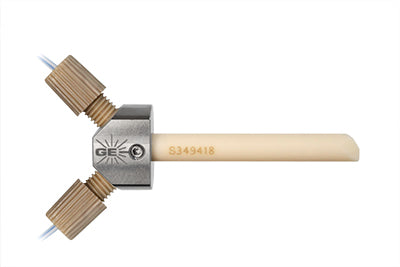

VeeSpray Ceramic Nebulizer

VeeSpray Ceramic Nebulizer - replaces AR30-07-CV6

Glass Expansion Part Number: ARG-07-CV6
Equivalent to OEM Part Numbers: CP914815, 40-0144-00, 40014400, N0777489, 14009400, 842312051321

Suggested Operation:

• Gas Flow (L/min): 0.7
• Sample Uptake (ml/min): 0.6 - 3.0

Includes:

• STT-16-75 Sample Tubing 0.75mm ID x 1/16 OD (750mm length)
• 70-803-1516 Type 13 DC Fitting with Ratchet Nebulizer connector
• 70-803-0697 Tube Adaptor EZT4-16-75
• QSM-4 EzyLok Connector for 4mm tubing (1 of each)

Suitable for the Following Instruments:

• Agilent (Varian) | ICP-OES | 5100 / 5110 | Axial / Radial
• Agilent (Varian) | ICP-OES | Vista / 700-ES Series Axial | Axial
• Agilent (Varian) | ICP-OES | Vista / 700 Series Radial | Radial
• GBC Scientific | ICP-OES | Integra XL, XM, XM2, XP, XMP | Radial
• PerkinElmer | ICP-OES | Optima 8x00 Series | Axial
• PerkinElmer | ICP-OES | Optima 2000 / 4000 / 5000 / 7000 DV Series | Axial
• PerkinElmer | ICP-OES | Optima 4300V, 5300V, 7300V | Radial
• PerkinElmer | ICP-OES | Optima 3000DV, 3100DV, 3200DV, 3300DV | Axial
• PerkinElmer | Optima 3000 Axial | Standard Sample Introduction
• Spectro (Ametek) | ICP-OES | Spectro ARCOSII SOP | Radial
• Spectro (Ametek) | ICP-OES | Spectro ARCOSII EOP | Axial
• Spectro (Ametek) | ICP-OES | SOP (Modula, CIROS, Genesis, ARCOS) | Radial
• Spectro (Ametek) | ICP-OES | EOP (Modula, CIROS, Genesis, ARCOS) | Axial
• Spectro (Ametek) | ICP-OES | Spectro Blue SOP | Radial
• Spectro (Ametek) | ICP-OES | Spectro Blue EOP | Axial
• Thermo | ICP-OES | iCAP 6000 / 7000 Duo | Axial
• Thermo | ICP-OES | iCAP 6000 / 7000 Radial | Radial
• Thermo | ICP-OES | Iris, Tracescan, Trace, Advantage, Intrepid | Axial
• Thermo | ICP-OES | Iris Duo | Axial
• Thermo | ICP-OES | Iris, Atomscan 16 & 25, ICAP & 61E, Intrepid | Radial

The Ceramic VeeSpray Nebulizer

The Ceramic VeeSpray nebulizer is made from alumina ceramic, making it ideal for HF analyses. It provides reproducible performance when working with samples containing large particulates. It has the same 6mm diameter as the standard concentric and the Alumina material makes it the most robust and abrasion resistant ICP nebulizer.

General Specifications:

• Material: 99.8% Alumina Ceramic
• High physical reproducibility ~ 1%
• TDS tolerance, typically up to 30%
• High tolerance to particulates, typically up to 300µm
• Must be pumped - does not self aspirate
• Design uptake range: 0.6 - 3ml/min. Operates best between 1.5 - 2.5ml/min

All Ceramic VeeSpray nebulizers listed in this website are supplied with: 750mm length of STT-16-75 sample tubing (sample tube 0.75mm ID x 1.6mm OD) Two ratchet connectors 2361 and ferrules 70-803-0780 EzyLok connector QSM-4 and tube adaptor 70-803-0697.
