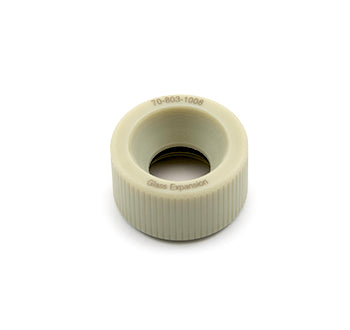

ConeGuard Thread Protector, Skimmer for Agilent 7700x / 7800 / 8800 / 8900
Glass Expansion Part Number: 70-803-1008
This ConeGuard Thread Protector is compatible with the following Cones:
| ConeGuard Thread Protector Part Number | Glass Expansion Cone Part Number | OEM Cone Part Number | Cone Description |
| 70-803-1008 | AT7702X-Ni | G3280-67041 | Nickel Skimmer Cone for Agilent® 7700x |
| AT7708X-Pt | G3280-67060 | Platinum Skimmer Cone for Agilent® 7700x | |
| AT7708X-Pt/Ni | G3280-67063 | Platinum Skimmer Cone with Nickel Base for Agilent® 7700x | |
| AT7902X-Al | - | Aluminium Skimmer Cone for Agilent 7900 with x lens | |
| AT7702X-Al | - | Aluminium Skimmer Cone for Agilent 7700x / 7800 / 8800 | |
| AT7708X-Pt-BF | - | Platinum Skimmer Cone with Copper Base for Agilent 7700x / 7800 / 8800 boron-free |
ConeGuard Thread Protector
When cleaning cones which have a screw thread, it is important that the thread is not contacted by any corrosive solution. If the thread gets corroded, the cone may not seal correctly or it may bond to the base and be difficult to remove. And with Pt cones, the thread is likely to wear out before the Pt insert. It is also important to keep the thread in good condition to prevent the possibility of cross-threading and potential damage to the instrument housing.
