HE-SIS for Agilent ICP-MS

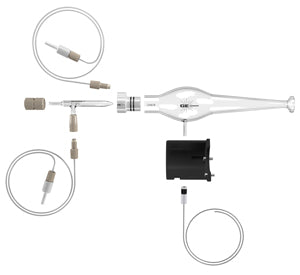

Single-Cell Sample Introduction System for Agilent ICP-MS

Glass Expansion Part Number: KT-1155

Includes:

• C13-1-UFT02 - MicroMist HE U-Series Nebulizer 0.2mL/min
• FT-16-8-X - LC Fittings Kit
• JC-13 - Metal Ball Joint Clip

Suitable for use with the Following Instruments:

• Agilent (HP) | ICP-MS | 7900
• Agilent (HP) | ICP-MS | 7700 / 8800
• Agilent (HP) | ICP-MS | 8900

Single-cell analysis using an Inductively Coupled Plasma-Mass Spectrometer (SC-ICP-MS) is enhancing the fundamental understanding in cellular biology, oncology and drug discovery. SC-ICP-MS provides for the quantification of metals in individual biological cells and is used as a research tool to allow scientists to study disease aetiology, better understand diseased cell states and develop new drug treatments to give better patient outcomes.

In single-cell analysis, the sample introduction system converts a continuous stream of biological cells efficiently into an aerosol of individual cells and transfers the aerosol into the Inductively Coupled Plasma of the ICP-MS for analysis. A critical aspect of the sample introduction system is the cells must remain intact and unruptured during the nebulization process to ensure each individual cell produces a single ion burst inside the plasma that can be transferred into the mass analyser of the ICP-MS for quantification.

Conventional ICP-MS spray chambers have low transport efficiencies (typically < 5% TE) that filter out larger droplets ( > 5µm) from the nebulizer aerosol. As most cell lines of interest are larger than 5µm, the secondary filtering mechanism of conventional spray chamber designs rejects a high proportion of the cells from passing to the plasma. To overcome this significant deficiency the Glass Expansion spray chamber design for single cell analysis is different from conventional ICP-MS spray chambers.

Glass Expansion have developed a Single-Cell Sample Introduction System (SC-SIS) for SC-ICP-MS which consists of a:

• High efficiency, low uptake, concentric glass nebulizer designed to efficiently nebulize single-cell suspensions without compromising cell integrity.
• Low volume, on-axis, laminar-flow spray chamber directly coupled to the ICP for the highest transport efficiency of the nebulized single-cell suspension.
• Patent pending MicroJet gas adapter which entrains and shapes the aerosol plume to reduce cell deposition onto the spray chamber walls and increase sample transport efficiency.
