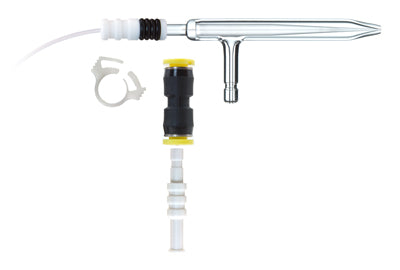

MicroMist U-Series Nebulizer 0.05mL/min

MicroMist U-Series Nebulizer 0.05mL/min (replaces AR30-07-UM005E)

Glass Expansion Part Number: ARG-07-UM005
Equivalent to OEM Part Number: N0775349

Suggested Operation:

• Gas Flow (L/min): 0.7
• Sample Uptake (ml/min): 0.05

Includes:

• NFT-025 UniFit Connector with 0.25mm ID x 1.3mm OD x 700mm long tubing (1 piece)
• EL-1 EzyLok Connector Kit

Suitable for the Following Instruments:

• Agilent (Varian) | ICP-OES | 5100 / 5110 | Axial / Radial
• Agilent (Varian) | ICP-OES | Vista / 700-ES Series Axial | Axial
• Agilent (Varian) | ICP-OES | Vista / 700 Series Radial | Radial
• GBC Scientific | ICP-OES | Integra XL, XM, XM2, XP, XMP | Radial
• PerkinElmer | ICP-OES | AVIO 500 / 200 | Axial / Radial
• PerkinElmer | ICP-OES | Optima 8x00 Series | Axial
• PerkinElmer | ICP-OES | Optima 2000 / 4000 / 5000 / 7000 DV Series | Axial
• PerkinElmer | ICP-OES | Optima 4300V, 5300V, 7300V | Radial
• PerkinElmer | ICP-OES | Optima 3000DV, 3100DV, 3200DV, 3300DV | Axial
• Perkin Elmer - Optima 3000 Axial - Standard Sample Introduction
• Shimadzu | ICP-MS | ICPM-8500, ICPM-2030
• Spectro (Ametek) | ICP-OES | Spectro ARCOSII SOP | Radial
• Spectro (Ametek) | ICP-OES | Spectro ARCOSII EOP | Axial
• Spectro (Ametek) | ICP-OES | SOP (Modula, CIROS, Genesis, ARCOS) | Radial
• Spectro (Ametek) | ICP-OES | EOP (Modula, CIROS, Genesis, ARCOS) | Axial
• Spectro (Ametek) | ICP-OES | Spectro Blue SOP | Radial
• Spectro (Ametek) | ICP-OES | Spectro Blue EOP | Axial
• Thermo | ICP-OES | iCAP 6000 / 7000 Duo | Axial
• Thermo | ICP-OES | iCAP 6000 / 7000 Radial | Radial
• Thermo | ICP-OES | Iris, Tracescan, Trace, Advantage, Intrepid | Axial
• Thermo | ICP-OES | Iris Duo | Axial
• Thermo | ICP-OES | Iris, Atomscan 16 & 25, ICAP & 61E, Intrepid | Radial

MicroMist Nebulizer

The Glass Expansion MicroMistTM low-flow nebulizer is ideal for ICP-MS applications due to its excellent transport efficiency and precision. The MicroMist uses the same VitriConeTM technology as the industry standard Conikal and SeaSpray nebulizers, resulting in the most rugged and reliable high performance low-flow nebulizer available.

The MicroMist micro-uptake glass concentric nebulizer offers high performance for limited sample volumes. It makes routine ICP-MS Hg determinations possible and reduces matrix effects when used with Glass Expansion's Cinnabar spray chamber.

General Specifications:

• Material: Borosilicate glass
• High physical reproducibility ~ 1%
• TDS tolerance, typically up to 15%
• Low RSD's due to highly accurate construction
• Standard available uptake: 0.05, 0.1, 0.2, 0.4 & 0.6mL/min

Benefits of the VitriCone Construction

• Sample channel is guaranteed uniform from entry point to nebulizer tip and thus resistant to clogging, in addition to providing a zero-dead volume sample connection.
• Rugged precision-machined capillary resists vibration and delivers the best possible precision.
• Industry’s tightest tolerances ensure that each nebulizer will perform to the same high standards as the previous one.

Recommended Applications

• Applications requiring the highest sensitivity and precision, such as toxic metals in cannabis.
• ICP-MS applications where oxide interferences exist.
• Samples with limited volume, such as difficult to digest samples or biological.
• Radioactive samples that are expensive to dispose of.
• Volatile organic solvents that would otherwise cause an excessive load on the plasma.
