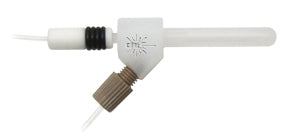

OpalMist Nebulizer 2mL/min

OpalMist Nebulizer 2mL/min - replaces AR30-07-PFA2

Glass Expansion Part Number: ARG-07-PFA2
Equivalent to OEM Part Numbers: CP914396, N0777734, 842312051471

Suggested Operation:

• Gas Flow (L/min): 0.7
• Sample Uptake (ml/min): 2

Includes:

• NFT-075 UniFit Connector with 0.75mm ID x 1.3mm OD x 700mm long tubing (1 piece)
• EL-1 EzyLok Connector Kit
• 70-803-0911 Ratchet EzyLok Connector (Obsolete - replaced by 70-803-1105 Gas Fitting with Ratchet Nebulizer Connector)

Suitable for the Following Instruments:

• Agilent (Varian) | ICP-OES | 5100 / 5110 | Axial / Radial
• Agilent (Varian) | ICP-OES | Vista / 700-ES Series Axial | Axial
• Agilent (Varian) | ICP-OES | Vista / 700 Series Radial | Radial
• GBC Scientific | ICP-OES | Integra XL, XM, XM2, XP, XMP | Radial
• PerkinElmer | ICP-OES | Optima 8x00 Series | Axial
• PerkinElmer | ICP-OES | Optima 2000 / 4000 / 5000 / 7000 DV Series | Axial
• PerkinElmer | ICP-OES | Optima 4300V, 5300V, 7300V | Radial
• PerkinElmer | ICP-OES | Optima 3000DV, 3100DV, 3200DV, 3300DV | Axial
• PerkinElmer | Optima 3000 Axial | Standard Sample Introduction
• Spectro (Ametek) | ICP-OES | Spectro ARCOSII SOP | Radial
• Spectro (Ametek) | ICP-OES | Spectro ARCOSII EOP | Axial
• Spectro (Ametek) | ICP-OES | SOP (Modula, CIROS, Genesis, ARCOS) | Radial
• Spectro (Ametek) | ICP-OES | EOP (Modula, CIROS, Genesis, ARCOS) | Axial
• Spectro (Ametek) | ICP-OES | Spectro Blue SOP | Radial
• Spectro (Ametek) | ICP-OES | Spectro Blue EOP | Axial
• Thermo | ICP-OES | iCAP 6000 / 7000 Duo | Axial
• Thermo | ICP-OES | iCAP 6000 / 7000 Radial | Radial
• Thermo | ICP-OES | Iris, Tracescan, Trace, Advantage, Intrepid | Axial
• Thermo | ICP-OES | Iris Duo | Axial
• Thermo | ICP-OES | Iris, Atomscan 16 & 25, ICAP & 61E, Intrepid | Radial

The OpalMist Nebulizer

The OpalMistTM PFA concentric nebulizer is the nebulizer of choice for high precision analyses requiring the highest chemical resistancy to HF, alkalis and organics. The high purity PFA construction makes it ideal for ultra-trace ICP-MS work.

Ultra-Trace Analysis
When carrying out ultra-trace analysis, especially by ICP-MS, the risk of contamination must be minimized. The high purity of the PFA material used to make the OpalMist nebulizer provides the exceptionally low background necessary for ultra-trace determinations.

Highly Corrosive Samples
The totally inert construction of the OpalMist PFA nebulizer enables it to easily handle even the most corrosive samples, such as those containing high levels of hydrofluoric acid (HF) or reactive organic solvents. The OpalMist is also capable of aspirating high concentrations of dissolved solids (typically up to 15%) without clogging. This makes the OpalMist the ideal nebulizer to handle geochemical samples which are typically dissolved in HF and are high in dissolved solids.

Other features of the OpalMist include:

• Excellent sensitivity – the small mean droplet size of the OpalMist increases transport efficiency without increasing noise.
• Excellent precision and long-term stability.
• Strong and consistent self-aspiration – available with natural uptake rates of 0.01, 0.05, 0.1,0.2, 0.4, 0.6, 1 and 2mL/min. Self-aspiration eliminates the need for peristaltic pump tubing, a potential source of contamination.
• Suitable for all ICP-MS and ICP-OES models.
• The exacting quality and reproducibility standards you have come to expect from Glass Expansion.
