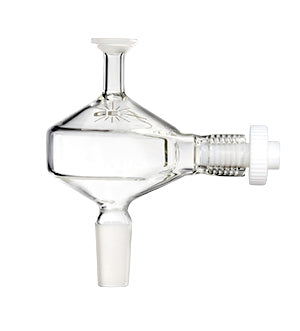

Tracey Spray Chamber with Helix CT

Tracey Spray Chamber with Helix and B14 drain, 50ml cyclonic, Borosilicate glass for Agilent (Varian) | MP-AES | 4100 / 4200 | Radial

Glass Expansion Part Number: 20-808-8881HE
Equivalent to OEM Part Number: 046-00093-02, 0460009302

Includes:

• 70-803-1439 Helix CT locking screw with seal (1 unit)
• JC-13 - Metal Ball Joint Clip

Suitable for the Following Instruments:

• GBC Scientific | ICP-OES | Integra XL, XM, XM2, XP, XMP | Radial
• Hitachi (SII) | ICP-OES / MS | SPS / SPQ Series | Radial
• Shimadzu | ICP-OES | 7000, 8000, 9000, 9800 Series | Radial / Axial

Tracey Cyclonic Spray Chamber

The Tracey cyclonic spray chamber is Glass Expansion's standard glass cyclonic spray chamber. It gives the best sensitivity, reproducibility and lowest memory effects for standard ICP analyses.

Jacketed Tracey spray chamber (borosilicate glass material)

The Jacketed Tracey spray chamber is made with an external jacket for the introduction of coolant for temperature control. Thermostatting to constant temperature helps ensure highly reproducible results and long term stability. Can also be cooled to suppress volatilization, allowing the direct aspiration of highly volatile solvents such as naphtha and petrol/gasoline.

General Specifications:

• Material: Borosilicate glass
• Volume: 50ml
• High sensitivity and reduced matrix effects
• Physical reproducibility ~1%
• Faster washout than older coaxial chamber designs
• Low RSD's due to highly accurate construction
• Positive stop for reproducible nebulizer insertion
• Application uptake range 0.2 to 3.0ml/min
