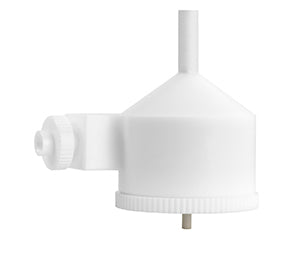

Tracey TFE Spray Chamber with Helix CT

Tracey HF TFE Spray Chamber with Helix CT, 50ml cyclonic, PTFE

Glass Expansion Part Number: 20-809-9198
Equivalent to OEM Part Number: 842312051451

Includes:

• UFT-16-75 UniFit Connector (1 unit)
• 70-803-1439 Helix CT locking screw with seal (1 unit)

Suitable for the Following Instruments:

• Thermo | ICP-OES | iCAP 6000 / 7000 Radial | Radial
• Thermo | ICP-OES | Iris, Atomscan 16 & 25, ICAP & 61E, Intrepid | Radial

Tracey cyclonic - an industry standard

The Tracey cyclonic spray chamber is Glass Expansion's standard glass cyclonic spray chamber. It gives the best sensitivity, reproducibility and lowest memory effects for standard ICP analyses.

General Specifications:

• Material: Borosilicate glass
• Volume: 50ml
• High sensitivity and reduced matrix effects
• Physical reproducibility ~1%
• Faster washout than older coaxial chamber designs
• Low RSD's due to highly accurate construction
• Positive stop for reproducible nebulizer insertion
• Application uptake range 0.2 to 3.0ml/min
