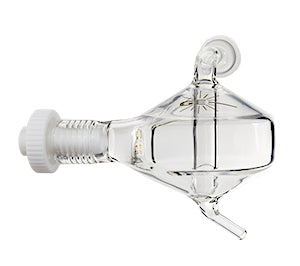

Twister Spray Chamber with Helix CT

Twister Spray Chamber with Helix CT , 50ml cyclonic, Borosilicate glass

Glass Expansion Part Number: 20-809-0293HE

Includes:

• UFT-16-75 UniFit Connector (1 unit)
• 70-803-1439 Helix CT locking screw with seal (1 unit)

Suitable for the Following Instruments:

• Thermo (Finnigan) | ICP-MS | Finnigan Element 1, Element 2, Neptune
• Thermo | ICP-MS | X Series

Twister cyclonic - reduces solvent load

The Twister cyclonic spray chamber features a central transfer tube which acts as a secondary particle separator helping separate larger aerosol particles from the sample. This reduces solvent load in the plasma without compromising detection limits.

General Specifications:

• Material: Borosilicate glass
• Volume: 50ml
• Physical reproducibility ~1%
• Low RSD's - highly accurate construction similar to Tracey cyclonic, except with central transfer tube
• Application uptake range 0.2 to 3.0ml/min
• Produces smaller mean droplet size
