D-Torch for SpectroBlue EOP

D-Torch for SpectroBlue EOP

Glass Expansion SKU: 30-808-3600

Call for price

Available Now!

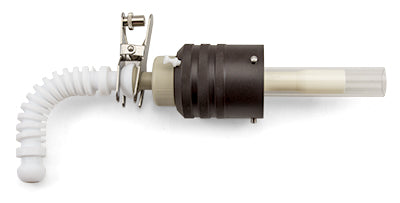

D-Torch for SpectroBlue EOP

Glass Expansion Part Number: 30-808-3600
Equivalent to OEM Part Number: 48105058

Includes:

  • 31-808-3605 - Base and Inner Tube for SpectroBlue D-Torch
  • 31-808-3601 - Quartz Outer Tube for D-Torch, SpectroBlue EOP
  • 31-808-2962 - Injector Ferrule for D-Torch
  • 31-808-3595 - Retainer for D-Torch
  • 31-808-3651 - Adaptor for D-Torch B19
  • 21-809-4045 - Adaptor S19-B19-90deg
  • JC-19 - Metal Ball Joint Clip
  • SAFEGLOVE-med - Safety Gloves, Medium

Additional Options for SpectroBlue D-Torch:

SAFEGLOVE-lge Safety Gloves, Large
SAFEGLOVE-med Safety Gloves, Medium
SAFEGLOVE-sml Safety Gloves, Small
21-809-4048 Adaptor S19-B13-90deg
21-809-4082 Sheath Gas Adaptor for SpectroBlue EOP/TI D-Torch
31-808-0009 Tapered Quartz Injector 1.0mm
31-808-3643 Tapered Quartz Injector 1.2mm
31-808-0007 Tapered Quartz Injector 1.5mm
31-808-8146 Tapered Quartz Injector 1.8mm
31-808-0008 Tapered Quartz Injector 2.0mm
31-808-3541 Tapered Quartz Injector 2.4mm
31-808-3645 Tapered Quartz Injector 2.5mm
31-808-0835 Tapered Alumina Injector 1.0mm
31-808-0013 Tapered Alumina Injector 1.5mm
31-808-0015 Tapered Alumina Injector 1.8mm
31-808-0087 Capillary Alumina Injector 1.8mm
31-808-0027 Tapered Alumina Injector 2.0mm
31-808-0385 Tapered Alumina Injector 2.4mm

D-Torch Demountable Torch

The D-Torch is a revolutionary new demountable torch design. It provides the benefits of a fully demountable torch at a significantly lower cost.

The benefits of the D-Torch include:

  • Demountable outer tube - why replace the entire torch when just the outer tube wears? With the D-Torch, you need only replace the outer tube. And most operators will be saving money after only two replacements.
  • Interchangeable quartz and ceramic outer tubes.
  • Much lower cost than other demountable torches.
  • Interchangeable injectors - choose the optimum injector for your application. Select from quartz for aqueous solutions, narrow bore for organics, wide bore for high dissolved solids or ceramic for HF.

The Benefits of a Ceramic Torch

Glass Expansion pioneered the design of ceramic torches more than 25 years ago with the PT2000 demountable torch for the ARL Maxim ICP-OES. Since then we have provided ceramic versions of our PT2000 and ABC demountable torches for several ICP models.

Ceramic outer tubes are now available for the D-Torch. In general the ceramic outer tube has a much longer lifetime, greatly reducing interruptions and downtime due to torch failure. The ceramic outer tube is of particular benefit for:

a) the analysis of wear metals in engine oils, where quartz outer tubes often suffer from short lifetime.
b) Si determinations, where quartz outer tubes often produce high background signals.
c) fusion samples or samples with high levels of dissolved solids which cause quartz tubes to devitrefy.
