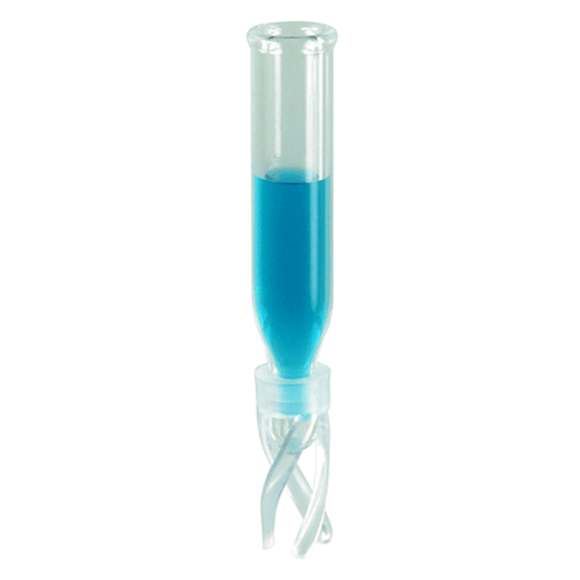

Inserts, Low Volume for Vials, Glass. Clear, Deactivated, 200ul total fill volume and approximately 50ul usable volume, with a conical, high precision point and 6x29mm outer dimensions with plastic spring attached. 100/PK.

First hydrolytic, Class A, Type 33, Deactivated / Silanized Borosilicate Glass. Features a thicker glass wall and a mandrel manufactured, precision point conical tip for maximum recovery of sample and internal consistency from insert to insert. Residual volume is 2ul with most autosamplers.

Polypropylene springs are attached to keep the inserts center aligned and reduce chances of the needle breaking the inserts during use. This product is manufactured in an ISO 9001:2015 Certified facility.

Can be used with 8x40mm Push Top "96 position" vials, 9mm threaded Screw Top or 11mm Snap Top Vials. Formally catalog number 9502S-01ND.
