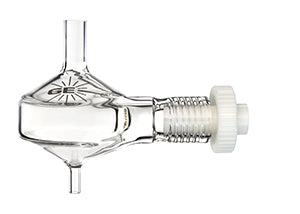

Cinnabar Spray Chamber with Helix CT

Cinnabar Spray Chamber with Helix CT , 20ml cyclonic, Borosilicate glass

Glass Expansion Part Number: 20-809-0183HE

Includes:

• UFT-2-700 - UniFit Connector (1 unit)
• 70-803-1439 Helix CT locking screw with seal (1 unit)

Suitable for the Following Instruments:

• Agilent (Varian) | ICP-OES | Vista / 700-ES Series Axial | Axial
• Agilent (Varian) | ICP-OES | Vista / 700 Series Radial | Radial

Cinnabar Cyclonic Spray Chamber - the low volume spray chamber for all ICPs

The Cinnabar spray chamber is a mini-cyclonic spray chamber which gives good sensitivity at very low uptakes. The Cinnabar's design and low volume is ideal for the reduction of memory and matrix effects and very fast washout.

General Specifications:

• Material: Borosilicate glass
• Volume: 20ml
• Physical reproducibility ~1%
• Matrix effects 5 times lower than with coaxial chambers
• Low RSD's due to highly accurate construction
• Positive stop for reproducible nebulizer insertion
• Application uptake range ~20 to 400 µl/min
• Ideal for use with MicroMist nebulizers

Jacketed Cinnabar spray chamber (borosilicate glass material)

The Jacketed Cinnabar spray chamber is made with an external jacket for the introduction of coolant for temperature control. Thermostatting to constant temperature helps ensure highly reproducible results and long term stability. Can also be cooled to suppress volatilization, allowing the direct aspiration of highly volatile solvents such as naphtha and petrol/gasoline. Ideal for use with MicroMist nebulizers.

Spray Chambers

The spray chamber is a crucial component of the ICP sample introduction system since it has a profound effect on transport efficiency, precision, and washout. Glass Expansion revolutionized the spray chamber design for the ICP industry with the Tracey and Twister cyclonic spray chamber, providing improved efficiency and reduced washout. Glass Expansion's unique Helix nebulizer interface, provides a zero dead volume seal that results in higher throughput compared to non-Glass Expansion designs.

Upgrade your ICP sample introduction system with a Glass Expansion Helix spray chamber today. Please view our product video and helpful links below to find the best spray chamber to suit your needs and learn more about the Glass Expansion difference.
