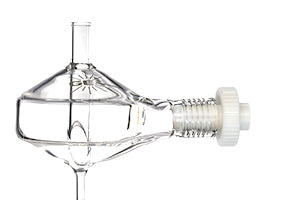

Twister Spray Chamber with Helix CT

Twister Spray Chamber with Helix CT , 50ml cyclonic, Borosilicate glass

Glass Expansion Part Number: 20-809-0285HE
Equivalent to OEM Part Number: 7910052500

Includes:

• UFT-2-700 - UniFit Connector (1 unit)
• 70-803-1439 Helix CT locking screw with seal (1 unit)

Suitable for the Following Instruments:

• Agilent (Varian) | ICP-OES | Vista / 700-ES Series Axial | Axial
• Agilent (Varian) | ICP-OES | Vista / 700 Series Radial | Radial

Twister cyclonic - reduces solvent load

The Twister cyclonic spray chamber features a central transfer tube which acts as a secondary particle separator helping separate larger aerosol particles from the sample. This reduces solvent load in the plasma without compromising detection limits.

General Specifications:

• Material: Borosilicate glass
• Volume: 50ml
• Physical reproducibility ~1%
• Low RSD's - highly accurate construction similar to Tracey cyclonic, except with central transfer tube
• Application uptake range 0.2 to 3.0ml/min
• Produces smaller mean droplet size

Jacketed Twister spray chamber (borosilicate glass material)

The Jacketed Twister spray chamber is made with an external jacket for the introduction of coolant for temperature control. Thermostatting to constant temperature helps ensure highly reproducible results and long term stability. Can also be cooled to suppress volatilization, allowing the direct aspiration of highly volatile solvents such as naphtha and petrol/gasoline. Recommended for analyses of organics samples.
