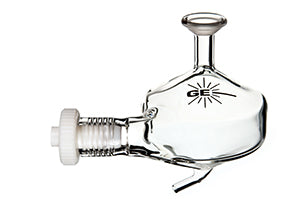

Tracey Spray Chamber with Helix CT

Tracey Spray Chamber with Helix CT - 50ml cyclonic, Borosilicate glass (for semi-demountable torch)

Glass Expansion Part Number: 20-808-8882HE
Equivalent to OEM Part Numbers: 13-410-407, 33010014, 1147929056, G8010-60271, 418-13-410-407, 5000-032

Includes:

• UFT-16-75 and UFT-2-700 UniFit Connectors (1 each)
• 70-803-1439 Helix CT locking screw with seal (1 unit)

Compatible with the Following Instruments:

• Agilent (Varian) | ICP-OES | 5100 / 5110 | Axial / Radial
• Agilent (Varian) | MP-AES | 4100 / 4200 MP-AES | Radial
• Jobin Yvon (Horiba) | ICP-OES | 24, 38 & 138 Series, Ultima, Activa | Radial
• Leeman (Teledyne) | ICP-OES | Leeman Series Radial, Prodigy, Profile | Radial
• Nu Instruments | ICP-MS | Nu Plasma
• PerkinElmer | ICP-OES | AVIO 500 / 200 | Axial / Radial
• PerkinElmer | ICP-OES | Optima 3000RL, 3100RL, 3200RL | Radial
• Spectro (Ametek) | ICP-OES | SOP (Modula, CIROS, Genesis, ARCOS) | Radial
• Thermo | ICP-MS | PlasmaQuad, Axiom
• Thermo | ICP-OES | Iris, Atomscan 16 & 25, ICAP & 61E, Intrepid | Radial

Tracey Cyclonic Spray Chamber

The Tracey cyclonic spray chamber is Glass Expansion's standard glass cyclonic spray chamber. It gives the best sensitivity, reproducibility and lowest memory effects for standard ICP analyses.

Jacketed Tracey spray chamber (borosilicate glass material)

The Jacketed Tracey spray chamber is made with an external jacket for the introduction of coolant for temperature control. Thermostatting to constant temperature helps ensure highly reproducible results and long term stability. Can also be cooled to suppress volatilization, allowing the direct aspiration of highly volatile solvents such as naphtha and petrol/gasoline.

General Specifications:

• Material: Borosilicate glass
• Volume: 50ml
• High sensitivity and reduced matrix effects
• Physical reproducibility ~1%
• Faster washout than older coaxial chamber designs
• Low RSD's due to highly accurate construction
• Positive stop for reproducible nebulizer insertion
• Application uptake range 0.2 to 3.0ml/min

Spray Chambers

The spray chamber is a crucial component of the ICP sample introduction system since it has a profound effect on transport efficiency, precision, and washout. Glass Expansion revolutionized the spray chamber design for the ICP industry with the Tracey and Twister cyclonic spray chamber, providing improved efficiency and reduced washout. Glass Expansion's unique Helix nebulizer interface, provides a zero dead volume seal that results in higher throughput compared to non-Glass Expansion designs.

Upgrade your ICP sample introduction system with a Glass Expansion Helix spray chamber today. Please view our product video and helpful links below to find the best spray chamber to suit your needs and learn more about the Glass Expansion difference.
