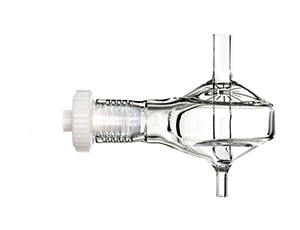

Twinnabar Spray Chamber with Helix CT

Twinnabar Spray Chamber with Helix CT, 20ml cyclonic, Borosilicate glass

Glass Expansion Part Number: 20-809-0448HE

Includes:

• UFT-2-700 - UniFit Connector (1 unit)
• 70-803-1439 Helix CT locking screw with seal (1 unit)

Suitable for the Following Instruments:

• Agilent (Varian) | ICP-OES | Vista / 700-ES Series Axial | Axial
• Agilent (Varian) | ICP-OES | Vista / 700 Series Radial | Radial

Twinnabar Cyclonic Spray Chamber - low volume, low solvent load

The Twinnabar cyclonic spray chamber is a low volume spray chamber with a central transfer tube (or baffle), combining the benefits of the Twister and the Cinnabar. It combines excellent precision with a very fast washout.

General Specifications:

• Material: Borosilicate glass
• Volume: 20ml
• Physical reproducibility ~1%
• Low RSD's due to highly accurate construction
• Application uptake range ~20 to 400 µl/min
